RSM-206TC
Introduction
RASEM series cutting machines are designed with the concept of high speed, high precision and easy control. With a stable and high rigid body structure, it shows the best stability during cutting. This machine is equipped with PC computer controller and LCD liquid crystal screen to optimize the cutting function and show the easiest and most convenient control characteristics.
Details
| Basic System Specifications | |
|---|---|
Working area (single disk) |
(X)240 x (Y)320 mm |
Z-axis travel |
80 mm |
Repeatability |
0.01 mm |
Drivetrain |
XYZ axis/servo motor |
Spindle speed |
4~60,000 revolutions |
Displacement velocity |
0~800mm/s |
Control system |
Computer |
Air source |
5KG/cm2 |
Device Features
- 1. Configure CCD auxiliary program editing and teaching functions.
- 2. Read AUTO CAD and G CODE files, with import, export, edit and modify functions.
- 3. Visual image automatic target positioning, identification and movement track display.. and other functions.
- 4. Powerful downdraft filter dust collector and static eliminator to solve dust problems.
- 5. It can be matched with the option of automatic feeding and unloading of double working platforms.
- 6. It can be matched with manual or in-line supply substrates to solve the design of substrates of different shapes.

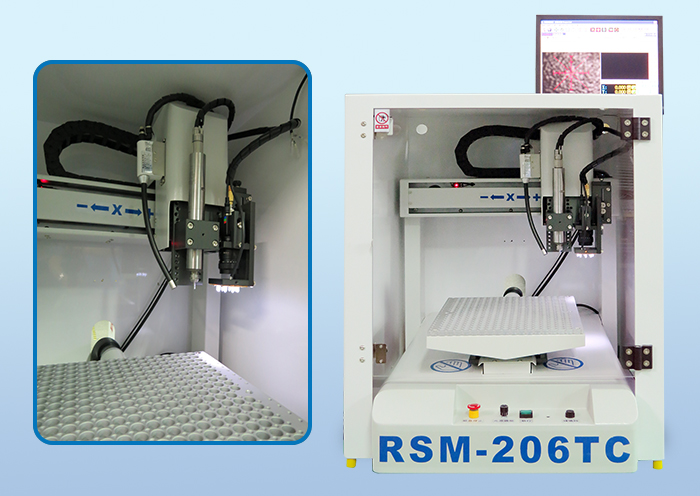

Close-up sketch
